Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring, 2 inch
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring, 2 inch
SKU:BRI-dafdf0
Durable and reliable Champion Fiberglass® Expansion Joint for high-level physical protection. UL certified and ideal for Class 1 Div 2 & Class 1 Zone 2 Applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring, 2 inch
$79.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring, 2 inch
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® Socket x Socket Single Expansion Joint is designed for high physical protection in Class 1 Div 2 & Class 1 Zone 2 Applications. Featuring an ID Aboveground style with an Extra Heavy Wall and Bullet Resistant characteristics, this black expansion joint ensures durability and reliability. With industry standards compliance certified by Underwriters Laboratories (UL), this expansion joint offers superior performance in demanding environments.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

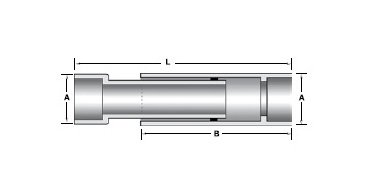

Dimesional Attributes A
3.000 in | 76 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
26 in | 660 mm
Dimesional Attributes L Min
18 in | 457 mm
Dimesional Attributes Nominal Size
2 in
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
ID Aboveground Socket x Socket Single Expansion Joints with O-Ring
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.64 kg | 3.62 lb
