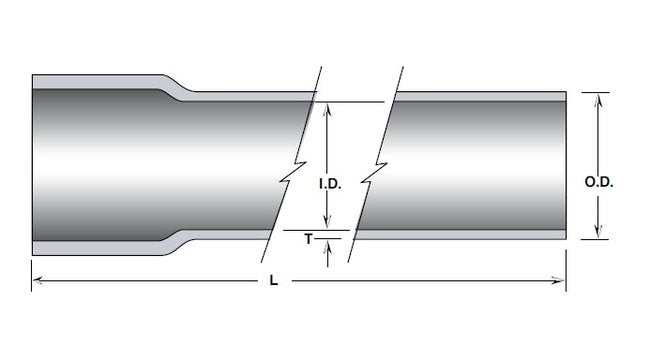

• Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End - Image 1
1 1
Colonial Teltek →

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

BRI-5299a0

Durable 1 1/2 in IPS Straight Conduit with Bell End for secure cable management. Meets UL and CSA certifications.

$25.99
$25.99
Sale

Initiate Order

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

$25.99

Quantity: 1

Claim Your Seller Account

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

Champion Fiberglass 1 1/2 in IPS Straight Conduit with Bell End

$25.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Champion Fiberglass 1 1/2 Inch Nominal Size Standard Wall Iron Pipe Size (IPS) Aboveground Straight Conduit with Straight Socket is a durable and reliable solution for your conduit needs. This conduit features an integral bell and spigot system, designed for seamless assembly with Champion Fiberglass epoxy adhesive. With a standard wall thickness, black color, and UL and CSA certifications, it meets industry standards for quality and safety. Ideal for bridge conduit systems, this conduit ensures secure and efficient cable management.

Product Specifications

Dimesional Attributes Average Outside Diameter
1.900 in | 48 mm
Dimesional Attributes Inside Diameter Min
1.760 in | 45 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
1 1/2 in | 38 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Straight Socket
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.33 lb/ft | 0.49 kg/m
