Champion Fiberglass 1 1/2" IPS Belowground Conduit Elbow - 30º x 12" Radius

Name: Champion Fiberglass 1 1/2" IPS Belowground Conduit Elbow - 30º x 12" Radius
Brand: Colonial Teltek
SKU: BRI-d2a8c4
Price: 24.99 USD
Availability: OutOfStock

SKU:BRI-d2a8c4

Champion Fiberglass 1 1/2" IPS Belowground Conduit Elbow - Durable, UL-certified elbow for reliable belowground installations.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 1 1/2" IPS Belowground Conduit Elbow features a 30º angle and a 12" radius, making it an ideal choice for durable and reliable conduit systems. Manufactured by Champion Fiberglass®, Inc., this elbow meets industry standards with its epoxy-based resin system and fiberglass construction. With a winding angle of 54.75 degrees and compliance with UL certifications, this elbow ensures safety and performance in belowground installations. The integral bell and spigot design and temperature range from -60ºF to 250ºF further enhance its suitability for diverse applications.

Product Specifications

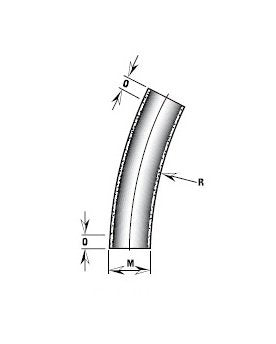

Dimesional Attributes M

1.900 in | 48 mm

Dimesional Attributes Nominal Size

1 1/2 in

Dimesional Attributes O Tangent Min

6 in | 152 mm

Dimesional Attributes R Radius Min

12 in | 305 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Angle

30 º

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Elbow

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Plain End Elbow

Specifications Type

Iron Pipe Size (IPS) Belowground Conduit Elbow

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.24 kg | 0.53 lb

Champion Fiberglass 1 1/2" IPS Belowground Conduit Elbow - 30º x 12" Radius
