Champion Fiberglass 1 1/2" IPS Belowground Straight Conduit

Name: Champion Fiberglass 1 1/2" IPS Belowground Straight Conduit
Brand: Colonial Teltek
SKU: BRI-546fa2
Price: 29.99 USD
Availability: OutOfStock

SKU:BRI-546fa2

Durable 1 1/2" IPS Belowground Straight Conduit, meets UL & CSA standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 1 1/2" IPS Belowground Straight Conduit is a durable and dependable solution for conduit systems. With a standard wall iron pipe size and straight socket joint, this conduit ensures easy installation and secure connections. Made with Champion Fiberglass epoxy adhesive compatibility, it meets industry standards such as Underwriters Laboratories (UL) and Canadian Standards Association (CSA). Ideal for belowground use, this conduit offers exceptional performance and reliability.

Product Specifications

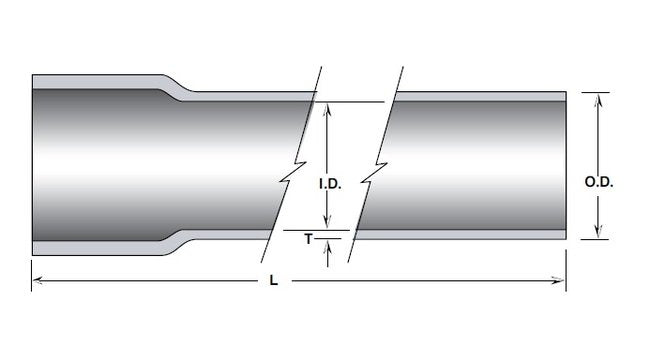

Dimesional Attributes Average Outside Diameter

1.900 in | 48 mm

Dimesional Attributes Inside Diameter Min

1.760 in | 45 mm

Dimesional Attributes Length L

20 ft | 6.1 m

Dimesional Attributes Nominal Size

1 1/2 in | 38 mm

Dimesional Attributes Nominal Wall Thickness

0.070 in | 2 mm

Dimesional Attributes Outside Diameter Tolerance

-0.018 in | 0.028 in | -0.4 mm | 0.7 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL), Canadian Standards Association (CSA)

Specifications Type

Iron Pipe Size (IPS) Belowground Straight Conduit with Straight Socket

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.33 lb/ft | 0.49 kg/m

Champion Fiberglass 1 1/2" IPS Belowground Straight Conduit
