Champion Fiberglass 1 1/4in IPS Aboveground Straight Conduit

Name: Champion Fiberglass 1 1/4in IPS Aboveground Straight Conduit
Brand: Colonial Teltek
SKU: BRI-2a55a3
Price: 69.99 USD
Availability: OutOfStock

SKU:BRI-2a55a3

Durable Champion Fiberglass 1 1/4in IPS Aboveground Straight Conduit for secure installations with UL certification.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior durability and performance with the Champion Fiberglass 1 1/4in IPS Aboveground Straight Conduit. This standard wall conduit, featuring a black color and bell end, is designed for easy installation using the integral bell and spigot system. Utilizing Champion Fiberglass epoxy adhesive, this conduit ensures a secure, reliable connection. Manufactured with UL certification, fiberglass construction, and epoxy resin system, it meets stringent industry standards for quality and safety. Suitable for a temperature range of -60ºF to 250ºF, and backed by ISO 9001:2008 compliance, this conduit is a top choice for industrial and institutional applications.

Product Specifications

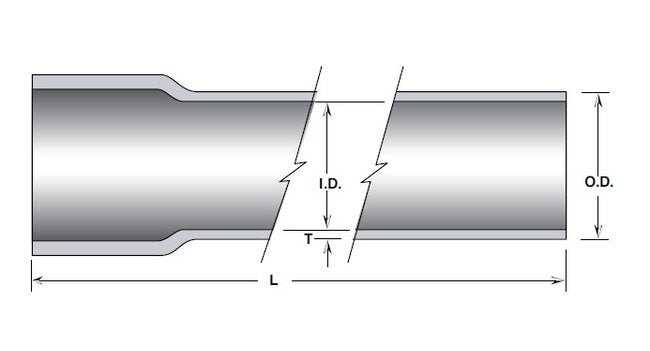

Dimesional Attributes Length L

10 ft

Dimesional Attributes Nominal Size

1 1/4 in

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Aboveground Straight Conduit with Straight Socket

Specifications Wall Thickness

Standard Wall

Champion Fiberglass 1 1/4in IPS Aboveground Straight Conduit
