Champion Fiberglass 1.5" IPS Belowground Radius Elbow - 90º x 12"
Champion Fiberglass 1.5" IPS Belowground Radius Elbow - 90º x 12"
SKU:PVC-f2e301
Durable fiberglass 1.5" IPS Belowground Radius Elbow - 90º x 12" for reliable conduit installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Champion Fiberglass 1.5" IPS Belowground Radius Elbow - 90º x 12"
$39.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 1.5" IPS Belowground Radius Elbow - 90º x 12"
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 1.5" IPS Belowground Radius Elbow is a durable and corrosion-resistant conduit elbow designed for belowground installations. Manufactured with fiberglass using a single circuit filament winding process, this elbow meets stringent industry standards, including UL certifications. With a 90º bend angle and a minimum radius of 12 inches, it offers superior performance and versatility. Suitable for use in a wide temperature range (-60ºF to 250ºF), this elbow ensures reliable connectivity and conduit protection in diverse environments.
Product Specifications
Application Features
Most Commonly used.

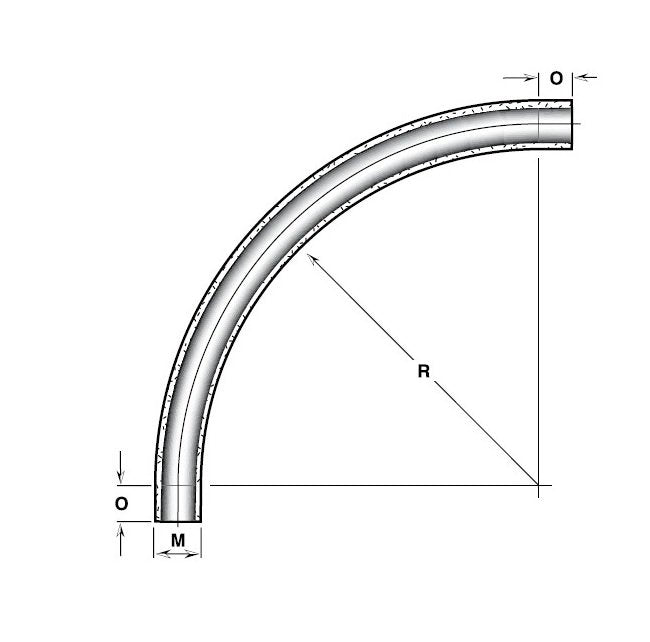

Dimesional Attributes M
1.900 in | 48 mm
Dimesional Attributes Nominal Size
1 1/2 in
Dimesional Attributes O Tangent Min
6 in | 152 mm
Dimesional Attributes R Radius Min
12 in | 305 mm
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Angle
90 º
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Conduit Type
Elbow
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Plain End Elbow
Specifications Type
Iron Pipe Size (IPS) Belowground Radius Elbow
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.38 kg | 0.83 lb
