Champion Fiberglass 1 Inch Standard Wall Type LB Conduit Body
Champion Fiberglass 1 Inch Standard Wall Type LB Conduit Body
SKU:BRI-c4d7e1
Durable 1 Inch Type LB Conduit Body, Flame Retardant, UL & CSA Certified, Watertight Seal, Stainless Steel Hardware
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Champion Fiberglass 1 Inch Standard Wall Type LB Conduit Body
$25.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 1 Inch Standard Wall Type LB Conduit Body
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 1 Inch Standard Wall Type LB Conduit Body is a top choice for durable and secure conduit installations. Made from vinyl ester resin with a high glass content, this conduit body is flame retardant, halogen-free, and meets stringent UL 2515 and CSA C22.2 No. 2515 standards. It features a high-performance rubber gasket for a watertight seal and comes with stainless steel hardware for added durability. With a volume capacity of 13.90 in³ and precise dimensions, this conduit body is the ideal solution for aboveground conduit systems.

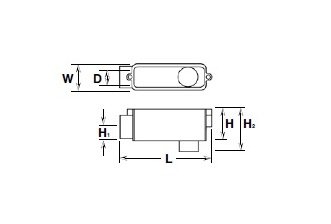

Product Specifications
Dimesional Attributes D
1.340 in | 34 mm
Dimesional Attributes H
2.375 in | 60 mm
Dimesional Attributes H1
1.000 in | 25 mm
Dimesional Attributes H2
3.900 in | 99 mm
Dimesional Attributes L
7.375 in | 187 mm
Dimesional Attributes Nominal Size
1 in
Dimesional Attributes W
1.840 in | 47 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
LB
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
13.90 in³ | 228 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.32 kg | 0.70 lb
