Champion Fiberglass 2 1/2" ID Aboveground Conduit with Interference Joint
Champion Fiberglass 2 1/2" ID Aboveground Conduit with Interference Joint
SKU:BRI-9e499a
Upgrade your conduit system with Champion Fiberglass - high-quality, durable, and compliant with UL and CSA standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Champion Fiberglass 2 1/2" ID Aboveground Conduit with Interference Joint
$45.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 2 1/2" ID Aboveground Conduit with Interference Joint
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conduit system with the Champion Fiberglass 2 1/2" Nominal Size Standard Wall ID Aboveground Straight Conduit. Featuring an integral bell and spigot with high pull-out strength, this concrete-tight conduit ensures easy installation and durability. Made with epoxy-based resin and continuous E-glass roving, it meets UL and CSA standards for reliable below-ground use, offering a temperature range of -60ºF to 250ºF. Champion Fiberglass sets the standard for quality and performance in conduit systems.

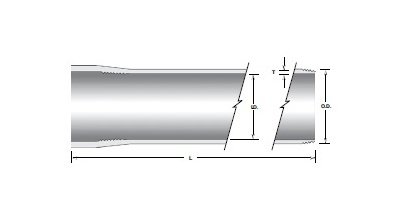

Product Specifications
Dimesional Attributes Average Outside Diameter
2.640 in | 67 mm
Dimesional Attributes Inside Diameter Min
2.52 in | 64 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
2 1/2 in | 64 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
ID Aboveground Straight Conduit with Interference Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.42 lb/ft | 0.63 kg/m
