Champion Fiberglass 2 1/2" ID Straight Conduit with Interference Joint

Name: Champion Fiberglass 2 1/2" ID Straight Conduit with Interference Joint
Brand: Colonial Teltek
SKU: PVC-9e499a
Price: 39.99 USD
Availability: OutOfStock

SKU:PVC-9e499a

Premium fiberglass conduit with interference joint, UL/CSA certified.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 2 1/2" ID Straight Conduit with Interference Joint features an integral bell and spigot system for easy installation. With a buttress type male thread on the spigot end and female threads on the belled end, joining is simple yet sturdy with a pull-out strength of 1,000 lbs. This conduit, designed for aboveground use, meets industry standards such as Underwriters Laboratories (UL) and Canadian Standards Association (CSA), ensuring reliability and safety in applications requiring concrete-tight joints.

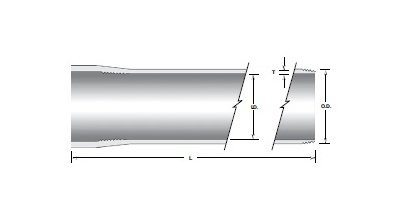

Product Specifications

Dimesional Attributes Average Outside Diameter

2.640 in | 67 mm

Dimesional Attributes Inside Diameter Min

2.52 in | 64 mm

Dimesional Attributes Length L

20 ft | 6.1 m

Dimesional Attributes Nominal Size

2 1/2 in | 64 mm

Dimesional Attributes Nominal Wall Thickness

0.070 in | 2 mm

Dimesional Attributes Outside Diameter Tolerance

-0.018 in | 0.028 in | -0.4 mm | 0.7 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL), Canadian Standards Association (CSA)

Specifications Type

ID Aboveground Straight Conduit with Interference Joint

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.42 lb/ft | 0.63 kg/m

Champion Fiberglass 2 1/2" ID Straight Conduit with Interference Joint
