Champion Fiberglass 2 Inch Aboveground Stop Coupling with Gasket Joint
Champion Fiberglass 2 Inch Aboveground Stop Coupling with Gasket Joint
SKU:BRI-a3986c
Get the Champion Fiberglass 2 Inch Stop Coupling for reliable, watertight performance in conduit systems.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Champion Fiberglass 2 Inch Aboveground Stop Coupling with Gasket Joint
$23.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 2 Inch Aboveground Stop Coupling with Gasket Joint
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 2 Inch Aboveground Stop Coupling with Gasket Joint is a premium solution designed for durability and reliability. This coupling features a triple seal gasket system, providing a watertight seal and exceptional pull-out strength. With a standard wall thickness and adherence to Underwriters Laboratories (UL) standards, this coupling is suitable for various applications in conduit systems. The belled end and spigot ensure a secure joint without the need for additional retainer rings, making installation hassle-free and efficient.

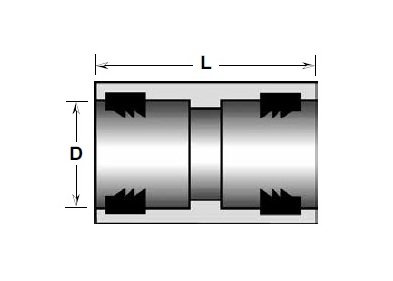

Product Specifications
Dimesional Attributes D
2.40 in | 61 mm
Dimesional Attributes L
8 in | 203 mm
Dimesional Attributes Nominal Size
2 in
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Aboveground Stop Coupling with Gasket Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.32 kg | 0.70 lb
