Champion Fiberglass 2-Inch Belowground Radius Elbow - 30º x 36 Inch
Champion Fiberglass 2-Inch Belowground Radius Elbow - 30º x 36 Inch
SKU:BRI-b06449
High-quality Champion Fiberglass 2-inch 30º x 36 Inch Belowground Radius Elbow for durable conduit systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Champion Fiberglass 2-Inch Belowground Radius Elbow - 30º x 36 Inch
$29.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 2-Inch Belowground Radius Elbow - 30º x 36 Inch
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 2-Inch Belowground Radius Elbow is expertly crafted for durability and efficiency. Featuring a 30º angle and a 36-inch radius, this ID elbow is designed with a standard wall thickness to meet the most demanding needs. Proudly meeting Underwriters Laboratories (UL) standards, it is made of high-quality fiberglass with epoxy-based resin, ensuring fire resistance and durability. Ideal for below-ground use, this plain end elbow exceeds industry expectations and is compatible with various conduit systems.

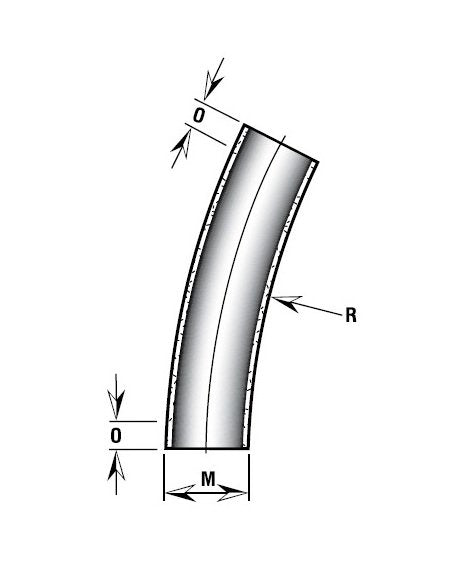

Product Specifications
Dimesional Attributes M
2.14 in | 54 mm
Dimesional Attributes Nominal Size
2 in
Dimesional Attributes O Tangent Min
6 in | 152 mm
Dimesional Attributes R Radius Min
36 in | 914 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Angle
30 º
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Elbow
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Plain End Elbow
Specifications Type
ID Belowground (Tubular) Radius Elbow
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.39 kg | 0.85 lb
