Champion Fiberglass 2-Inch Bullet Resistant ID Single Expansion Joint with O-Ring
Champion Fiberglass 2-Inch Bullet Resistant ID Single Expansion Joint with O-Ring
SKU:BRI-628020
Champion Fiberglass 2-Inch Bullet Resistant Single Expansion Joint for optimal safety and durability
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Champion Fiberglass 2-Inch Bullet Resistant ID Single Expansion Joint with O-Ring
$69.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 2-Inch Bullet Resistant ID Single Expansion Joint with O-Ring
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

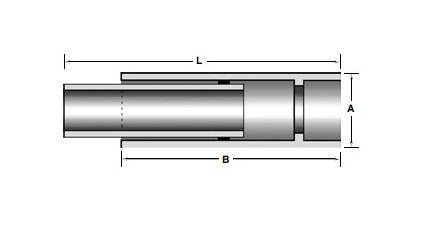

The Champion Fiberglass 2-Inch Extra Heavy Wall Single Expansion Joint is designed to provide the highest level of physical protection, ideal for Class 1 Div 2 & Class 1 Zone 2 Applications. With a bullet-resistant construction and Underwriters Laboratories (UL) certification, this black expansion joint ensures durability and safety. Featuring dimensions of 3.000 in (A), 12 in (B), and a variable length between 15 in to 23 in, this expansion joint offers flexibility in installation. The yellow line marking on the nipple end ensures accurate installation for maximum effectiveness.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications
Dimesional Attributes A
3.000 in | 76 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
2 in
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
ID Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.32 kg | 2.90 lb
