Champion Fiberglass 2 Inch Bullet Resistant Straight Conduit
Champion Fiberglass 2 Inch Bullet Resistant Straight Conduit
SKU:PVC-17fb69

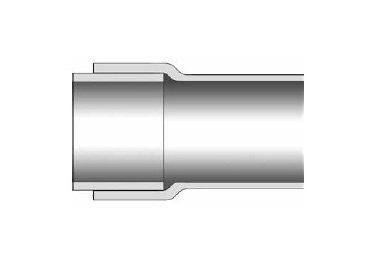

Champion Fiberglass 2-inch Bullet Resistant Straight Conduit with Straight Socket - UL certified for high physical protection.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Champion Fiberglass 2 Inch Bullet Resistant Straight Conduit with Straight Socket is designed for the highest level of physical protection, ideal for Class 1 Div 2 & Class 1 Zone 2 Applications. Manufactured using a single circuit filament winding process, it features an epoxy-based resin system with continuous E-glass roving. With a temperature range from -60ºF to 250ºF, this conduit meets stringent industry standards and certifications like Underwriters Laboratories (UL). Champion Fiberglass ensures quality with ISO 9001:2008 certification.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications
Dimesional Attributes Length L
10 ft
Dimesional Attributes Nominal Size
2 in
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Aboveground Straight Conduit with Straight Socket
