Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint with O-Ring
Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint with O-Ring
SKU:PVC-628020
Enhance safety with Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint, UL-certified for optimal protection.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint with O-Ring
$89.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint with O-Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 2 Inch Extra Heavy Wall Expansion Joint with O-Ring is designed for maximum physical protection, making it ideal for Class 1 Div 2 & Class 1 Zone 2 applications. With a bullet-resistant construction, this expansion joint ensures durability and safety. Meeting Underwriters Laboratories (UL) standards, it features a 2-inch nominal size, extra heavy wall thickness, and precise dimensions for secure installations. The yellow line on the nipple end aids in proper installation, while the installation guidelines ensure optimal performance over varying duct lengths. Upgrade your conduit system with this reliable, compliant, and efficient expansion joint.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

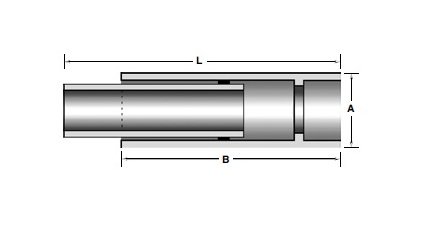

Dimesional Attributes A
3.000 in | 76 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
2 in
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
ID Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.32 kg | 2.90 lb
