Champion Fiberglass 3 1/2 in IPS Aboveground Sleeve Coupling with Gasket Joint
Champion Fiberglass 3 1/2 in IPS Aboveground Sleeve Coupling with Gasket Joint
SKU:BRI-20f5fd
Securely join conduits with Champion Fiberglass 3 1/2 in Sleeve Coupling with Gasket Joint - UL Certified
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Champion Fiberglass 3 1/2 in IPS Aboveground Sleeve Coupling with Gasket Joint
$35.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 3 1/2 in IPS Aboveground Sleeve Coupling with Gasket Joint
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 3 1/2 inch IPS Aboveground Sleeve Coupling with Gasket Joint is a reliable and durable solution for joining conduits securely. This coupling features a standard wall thickness and a black color finish. The triple seal gasket joint, with a pull out strength of 2,000 lbs, ensures a watertight seal and eliminates the need for additional retainer rings. Ideal for bridge conduit systems, this coupling meets Underwriters Laboratories (UL) standards for safety and quality.
Product Specifications

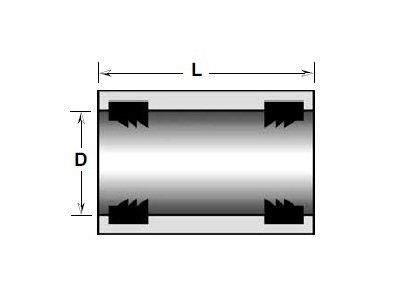

Dimesional Attributes D
3.52 in | 89 mm
Dimesional Attributes L
8 in | 203 mm
Dimesional Attributes Nominal Size
3 1/2 in
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Aboveground Sleeve Coupling with Gasket Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.43 kg | 0.95 lb
