Champion Fiberglass 3/4" LB Conduit Body

Name: Champion Fiberglass 3/4" LB Conduit Body
Brand: Colonial Teltek
SKU: BRI-4e7455
Price: 24.99 USD
Availability: OutOfStock

SKU:BRI-4e7455

Enhance your conduit system with this durable 3/4" LB Conduit Body from Champion Fiberglass. Meets UL 2515 & CSA C22.2 No. 2515 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your conduit system with the Champion Fiberglass 3/4 inch LB Conduit Body. Manufactured with high-strength vinyl ester resin and flame retardant properties, this conduit body meets UL 2515, CSA C22.2 No. 2515 standards. The inclusion of a high-performance rubber gasket ensures a watertight seal, and the stainless steel hardware adds durability. Ideal for both consumer and institutional applications, this LB conduit body is the epitome of reliability and safety.

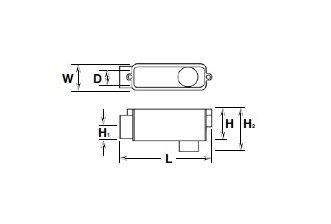

Product Specifications

Dimesional Attributes D

1.075 in | 27 mm

Dimesional Attributes H

2.375 in | 60 mm

Dimesional Attributes H1

1.000 in | 25 mm

Dimesional Attributes H2

3.900 in | 99 mm

Dimesional Attributes L

7.375 in | 187 mm

Dimesional Attributes Nominal Size

3/4 in

Dimesional Attributes W

1.840 in | 47 mm

Features

Most Commonly used.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Industry Standardscertifications

Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515

Specifications Material

Vinyl Ester Resin with High Glass Content

Specifications Style

Specifications Type

Iron Pipe Size (IPS) Aboveground Conduit Body

Specifications Volume Capacity

13.90 in³ | 228 cm³

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.32 kg | 0.70 lb
