Champion Fiberglass 3" Extra Heavy Wall Bullet Resistant Expansion Joint with O-Ring

Name: Champion Fiberglass 3" Extra Heavy Wall Bullet Resistant Expansion Joint with O-Ring
Brand: Colonial Teltek
SKU: PVC-86e3c0
Price: 159.99 USD
Availability: OutOfStock

SKU:PVC-86e3c0

Enhance safety with Champion Fiberglass 3" Extra Heavy Wall Expansion Joint. UL-certified for top-tier protection in critical applications.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 3-inch Extra Heavy Wall Expansion Joint offers superior physical protection suitable for Class 1 Div 2 & Class 1 Zone 2 Applications. This single expansion joint features a robust design with bullet-resistant properties, ensuring durability and safety. With UL certification, it meets stringent industry standards for quality and performance. Ideal for installations requiring the highest level of security, this expansion joint provides reliability and peace of mind.

Product Specifications

Application

Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

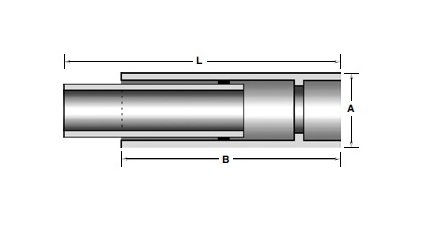

Dimesional Attributes A

4.0000 in | 102 mm

Dimesional Attributes B

12 in | 305 mm

Dimesional Attributes L Max

23 in | 584 mm

Dimesional Attributes L Min

15 in | 381 mm

Dimesional Attributes Nominal Size

3 in

Installation Of Expansion Joints

When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart

Note

All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Expansion

Specifications Type

ID Aboveground Single Expansion Joint with O-Ring

Specifications Wall Thickness

Extra Heavy Wall, Bullet Resistant

Specifications Weight

1.90 kg | 4.19 lb

Champion Fiberglass 3" Extra Heavy Wall Bullet Resistant Expansion Joint with O-Ring
