Champion Fiberglass 3 Inch Extra Heavy Wall Aboveground Box Connector
Champion Fiberglass 3 Inch Extra Heavy Wall Aboveground Box Connector
SKU:PVC-6f2e29
Enhance electrical terminations with the Champion Fiberglass 3 Inch Box Connector for superior protection and reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Champion Fiberglass 3 Inch Extra Heavy Wall Aboveground Box Connector
$29.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 3 Inch Extra Heavy Wall Aboveground Box Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical installations with the Champion Fiberglass® 3 Inch ID Extra Heavy Wall Aboveground Box Connector. This tapered NPT connector ensures secure terminations with straight threads, supplied with a locknut for added stability. Built to withstand demanding environments, this UL-certified connector offers the highest level of physical protection for Class 1 Div 2 & Class 1 Zone 2 applications, featuring extra heavy wall construction for bullet-resistant durability.
Product Specifications

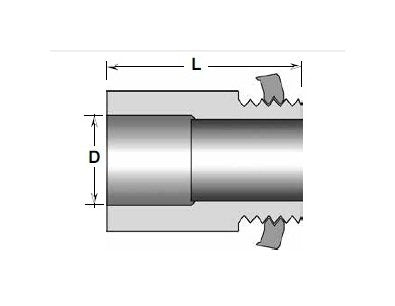

Dimesional Attributes D
3.52 in | 89 mm
Dimesional Attributes L
5 in | 127 mm
Dimesional Attributes Nominal Size
3 in
Specifications Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 ApplicationsThreaded Fittings
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Box Connector
Specifications Connection Type
Tapered, National Pipe Thread (NPT)
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Aboveground Box Connector
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
0.58 kg | 1.28 lb
