Champion Fiberglass 3 Inch Extra Heavy Wall Bullet Resistant Straight Conduit

Name: Champion Fiberglass 3 Inch Extra Heavy Wall Bullet Resistant Straight Conduit
Brand: Colonial Teltek
SKU: PVC-c4a051
Price: 39.99 USD
Availability: OutOfStock

SKU:PVC-c4a051

Highly durable Champion Fiberglass 3 Inch Straight Conduit for physical protection in Class 1 Div 2 applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

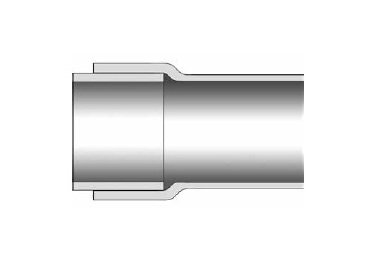

The Champion Fiberglass 3 Inch Extra Heavy Wall Bullet Resistant Straight Conduit with Straight Socket is a reliable solution designed for the highest level of physical protection in Class 1 Div 2 & Class 1 Zone 2 Applications. Made of fiberglass using a single circuit filament winding process, this conduit features an integral bell and spigot end type that ensures secure connections. Its epoxy-based resin system is free from fillers and halogen compounds, offering exceptional fire resistance and durability. Manufactured under strict quality management systems, it meets Underwriters Laboratories (UL) standards for safety and performance.

Product Specifications

Application

Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

Dimesional Attributes Length L

10 ft

Dimesional Attributes Nominal Size

3 in

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

ID Aboveground Straight Conduit with Straight Socket

Champion Fiberglass 3 Inch Extra Heavy Wall Bullet Resistant Straight Conduit
