Champion Fiberglass 3 Inch IPS Fiberglass End Cap with Gasket
Champion Fiberglass 3 Inch IPS Fiberglass End Cap with Gasket
SKU:BRI-ba6bcf
Seal conduit ends effectively with Champion Fiberglass 3 Inch IPS End Cap. Durable, watertight, and UL-certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Champion Fiberglass 3 Inch IPS Fiberglass End Cap with Gasket
$29.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 3 Inch IPS Fiberglass End Cap with Gasket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 3 Inch IPS Standard Wall Aboveground Fiberglass End Cap with Gasket is a durable and reliable solution for sealing conduit ends in bridge conduit systems. Manufactured by Champion Fiberglass, this end cap features a triple seal gasket joint system that ensures a watertight seal and a pull-out strength of 2,000 lbs when properly installed. Made of high-quality fiberglass material, this end cap meets Underwriters Laboratories (UL) standards, making it a robust choice for both consumer and institutional users seeking top-notch quality and performance.
Product Specifications

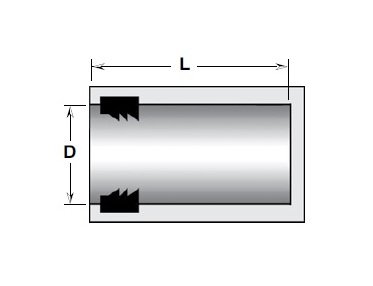

Dimesional Attributes D
3.52 in | 89 mm
Dimesional Attributes L
4 in | 102 mm
Dimesional Attributes Size
3 in
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Material
Fiberglass
Specifications Type
Iron Pipe Size (IPS) Aboveground Fiberglass End Cap with Gasket Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.43 kg | 0.95 lb
