Champion Fiberglass 3 Inch Standard Wall Belowground Box Connector
Champion Fiberglass 3 Inch Standard Wall Belowground Box Connector
SKU:BRI-69d485
Champion Fiberglass 3 Inch Box Connector: UL-compliant, epoxy-based resin, durable construction for underground conduit systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Champion Fiberglass 3 Inch Standard Wall Belowground Box Connector
$39.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 3 Inch Standard Wall Belowground Box Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 3 Inch Standard Wall Belowground Box Connector is a top-tier solution designed for underground conduit systems. This ID connector, compliant with UL standards, features a durable epoxy-based resin system and fiberglass construction. With a taper NPT connection, integral bell and spigot design, and a wide operating temperature range, this connector ensures reliable performance in extreme conditions. Manufactured with precision and adherence to stringent quality standards, this fiberglass connector is the ideal choice for reliable belowground installations.
Product Specifications

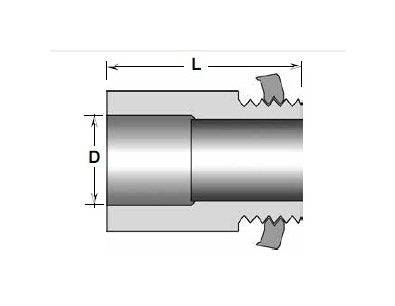

Dimesional Attributes D
3.16 in | 80 mm
Dimesional Attributes L
5 in | 127 mm
Dimesional Attributes Nominal Size
3 in
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Box Connector
Specifications Connection Type
Tapered, National Pipe Thread (NPT)
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Belowground (Tubular) Box Connector
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.58 kg | 1.28 lb
