Champion Fiberglass 4 Inch Heavy Wall Iron Pipe Size Aboveground Conduit with Interference Joint

Name: Champion Fiberglass 4 Inch Heavy Wall Iron Pipe Size Aboveground Conduit with Interference Joint
Brand: Colonial Teltek
SKU: BRI-d8170d
Price: 49.99 USD
Availability: OutOfStock

SKU:BRI-d8170d

Champion Fiberglass 4in Heavy Wall Conduit with Interference Joint. Strong, durable, and meets UL & CSA standards. Ideal for increased protection applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 4 Inch Heavy Wall Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint offers superior protection and durability. Featuring an integral bell and spigot with buttress threads for easy installation and a high pull out strength of 1,000 lbs. This concrete-tight conduit, meeting UL and CSA standards, is ideal for applications requiring increased protection in 4"-8" sizes. Manufactured with high-quality epoxy-based resin and continuous E-glass roving, this conduit is temperature-resistant from -60ºF to 250ºF. Champion Fiberglass ensures strict adherence to ISO 9001:2008 Quality Management System for reliable performance and long-lasting quality.

Product Specifications

Application

Used for increased protection in 4" - 8"

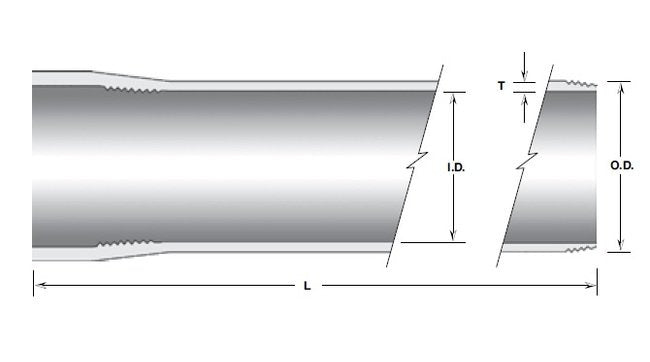

Dimesional Attributes Average Outside Diameter

4.51 in | 115 mm

Dimesional Attributes Inside Diameter Min

4.320 in | 110 mm

Dimesional Attributes Length L

20 ft | 6.1 m

Dimesional Attributes Nominal Size

4 in | 102 mm

Dimesional Attributes Nominal Wall Thickness

0.070 in | 2 mm

Dimesional Attributes Outside Diameter Tolerance

-0.022 in | 0.028 in | -0.6 mm | 0.7 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL), Canadian Standards Association (CSA)

Specifications Type

Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint

Specifications Wall Thickness

Heavy Wall

Specifications Weight

0.97 lb/ft | 1.44 kg/m
