Champion Fiberglass 4 Inch Standard Wall Iron Pipe Size Single Expansion Joint with O-Ring
Champion Fiberglass 4 Inch Standard Wall Iron Pipe Size Single Expansion Joint with O-Ring
SKU:BRI-d1879f
Premium 4in Expansion Joint with O-Ring for aboveground use, UL-certified, easy installation
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Champion Fiberglass 4 Inch Standard Wall Iron Pipe Size Single Expansion Joint with O-Ring
$79.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 4 Inch Standard Wall Iron Pipe Size Single Expansion Joint with O-Ring
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 4 Inch Standard Wall Iron Pipe Size Single Expansion Joint with O-Ring is designed for aboveground applications, featuring a durable construction that meets Underwriters Laboratories (UL) standards. With a 4.61 inch Nominal Size and 12 inch B dimension, this expansion joint ensures optimal flexibility and reliability. It comes with installation guidelines for different duct lengths, and each joint is marked with a yellow line for easy setup.

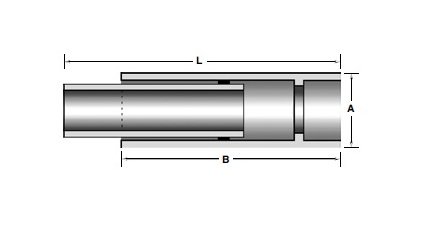

Product Specifications
Dimesional Attributes A
4.61 in | 117 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
4 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.75 kg | 1.66 lb
