Champion Fiberglass 4" IPS Belowground Female Terminal Adapter

Name: Champion Fiberglass 4" IPS Belowground Female Terminal Adapter
Brand: Colonial Teltek
SKU: BRI-078a80
Price: 29.99 USD
Availability: OutOfStock

SKU:BRI-078a80

Join fiberglass to GRS conduit with quality Champion Fiberglass 4" IPS Female Terminal Adapter.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 4" IPS Belowground Female Terminal Adapter is designed for joining fiberglass conduit with galvanized rigid steel conduit below ground. With standard wall thickness and a female, threaded connection, this adapter meets Underwriters Laboratories (UL) standards and is most commonly used. Manufactured with epoxy-based resin and continuous E-glass roving, it ensures durability and fire resistance, suitable for temperatures ranging from -60ºF to 250ºF. Champion Fiberglass holds ISO 9001:2008 certification for quality management.

Product Specifications

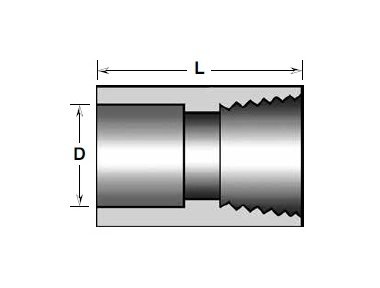

Dimesional Attributes D

4.47 in | 114 mm

Dimesional Attributes L

5 in | 127 mm

Dimesional Attributes Nominal Size

4 in

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Adapter

Specifications Connection Type

Female, Threaded

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Standard Wall Belowground Female Terminal Adapter

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.48 kg | 1.05 lb
