Champion Fiberglass 45º x 12-Inch Radius Belowground Conduit Elbow

Name: Champion Fiberglass 45º x 12-Inch Radius Belowground Conduit Elbow
Brand: Colonial Teltek
SKU: BRI-cf04f8
Price: 29.99 USD
Availability: OutOfStock

SKU:BRI-cf04f8

Durable Champion Fiberglass 45º x 12-Inch Radius Belowground Conduit Elbow for reliable belowground installations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 45º x 12-Inch Radius Belowground Conduit Elbow is a durable, high-performance elbow designed for belowground installations. Made from fiberglass reinforced thermosetting resin, this elbow offers superior strength and corrosion resistance. With a standard wall thickness, plain end design, and black color, it meets the stringent industry standards like Underwriters Laboratories (UL). It features a 1 1/2-inch nominal size, a minimum 12-inch radius, and a 45º angle, making it versatile and easy to integrate into conduit systems. Ideal for use in demanding environments, this elbow ensures reliability and longevity.

Product Specifications

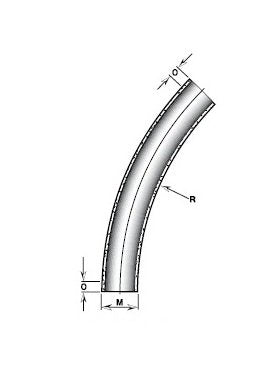

Dimesional Attributes M

1.900 in | 48 mm

Dimesional Attributes Nominal Size

1 1/2 in

Dimesional Attributes O Tangent Min

6 in | 152 mm

Dimesional Attributes R Radius Min

12 in | 305 mm

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Angle

45 º

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Elbow

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Plain End Elbow

Specifications Type

Iron Pipe Size (IPS) Belowground Conduit Elbow

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.26 kg | 0.58 lb
