Champion Fiberglass 4in x 10ft Standard Wall IPS Conduit

Name: Champion Fiberglass 4in x 10ft Standard Wall IPS Conduit
Brand: Colonial Teltek
SKU: BRI-c75997
Price: 79.99 USD
Availability: OutOfStock

SKU:BRI-c75997

Durable 4in x 10ft Standard Wall IPS Conduit with Interference Joint, easy installation, high pull-out strength, meets UL standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 4-inch Nominal Size and 10ft Length Standard Wall IPS Straight Conduit with Interference Joint is a durable and high-strength conduit ideal for aboveground installations. Featuring an integral bell and spigot design with tapered buttress threads, this conduit ensures easy installation and a pull-out strength of 1,000 lbs. While the joint is concrete tight, it is not water tight, making it suitable for various applications. Champion Fiberglass products meet stringent industry standards including Underwriters Laboratories (UL) certifications.

Product Specifications

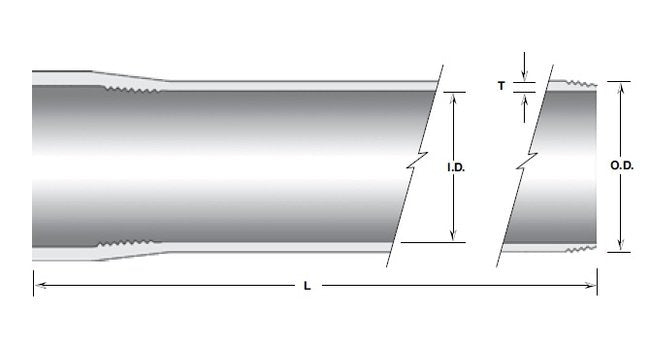

Dimesional Attributes Length L

10 ft | 3 m

Dimesional Attributes Nominal Size

4 in

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Note

When ordering 10 ft (3.05 m) lengths, half of the order will be supplied with interference joint and half with straight socket joint.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint

Specifications Wall Thickness

Standard Wall

Champion Fiberglass 4in x 10ft Standard Wall IPS Conduit
