Champion Fiberglass 4in x 10ft Straight Conduit with Interference Joint
Champion Fiberglass 4in x 10ft Straight Conduit with Interference Joint
SKU:PVC-c75997
Champion Fiberglass 4in x 10ft Straight Conduit with Interference Joint - Durable, UL-certified conduit for secure aboveground electrical installations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Champion Fiberglass 4in x 10ft Straight Conduit with Interference Joint
$59.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 4in x 10ft Straight Conduit with Interference Joint
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 4-inch by 10-foot Straight Conduit with Interference Joint is a durable and reliable aboveground solution for your electrical conduit needs. Featuring an integral bell and spigot system, installation is hassle-free with a tapered buttress thread design that ensures a high pull-out strength of 1,000 lbs. This UL-certified conduit, made with epoxy-based resin and continuous E-glass roving, meets stringent industry standards for fire resistance and temperature range. Ideal for applications demanding concrete-tight connections with easy jointing capabilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

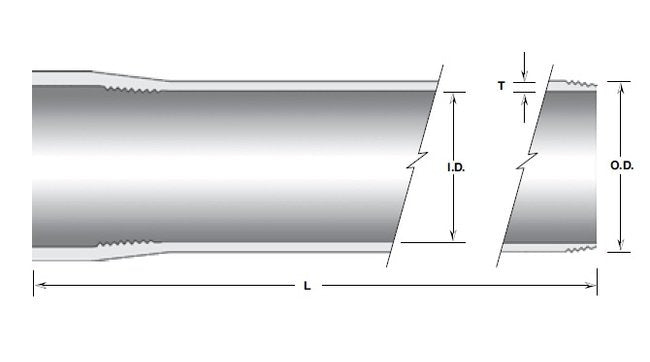

Dimesional Attributes Length L
10 ft | 3 m
Dimesional Attributes Nominal Size
4 in
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Note
When ordering 10 ft (3.05 m) lengths, half of the order will be supplied with interference joint and half with straight socket joint.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint
Specifications Wall Thickness
Standard Wall
