Champion Fiberglass 5" ID Female Terminal Adapter
Champion Fiberglass 5" ID Female Terminal Adapter
SKU:BRI-14b6da
Securely join fiberglass and galvanized steel conduits with the Champion Fiberglass 5" ID Female Terminal Adapter, built to industry-leading standards for reliability and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Champion Fiberglass 5" ID Female Terminal Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" ID Female Terminal Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 5" ID Standard Wall Belowground Female Terminal Adapter is meticulously engineered for seamless integration between fiberglass and galvanized steel conduits. Designed to meet stringent industry standards, this adapter ensures a secure and reliable connection. Manufactured with UL-certified materials, it guarantees durability and performance even in extreme temperatures. Ideal for government and institutional applications, this adapter complies with ISO 9001:2008 standards, making it a trusted choice for critical infrastructure projects.
Product Specifications

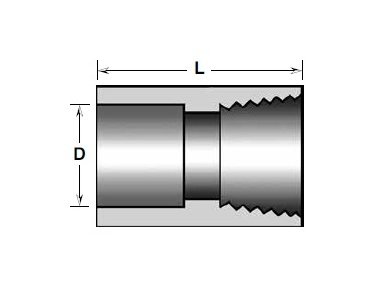

Dimesional Attributes D
5.16 in | 131 mm
Dimesional Attributes L
5 in | 127 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Adapter
Specifications Connection Type
Female, Threaded
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Belowground (Tubular) Female Terminal Adapter
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.86 kg | 1.90 lb
