Champion Fiberglass 5-Inch Belowground Alignment/Expansion Fitting with O-Ring

Name: Champion Fiberglass 5-Inch Belowground Alignment/Expansion Fitting with O-Ring
Brand: Colonial Teltek
SKU: PVC-600729
Price: 89.99 USD
Availability: OutOfStock

SKU:PVC-600729

Enhance belowground conduit systems with the Champion Fiberglass 5-Inch Alignment/Expansion Fitting for reliable performance and corrosion protection.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your belowground conduit systems with the Champion Fiberglass 5-Inch Alignment/Expansion Fitting. This fitting features a medium wall thickness and a durable O-Ring seal, ensuring reliable performance and corrosion protection. Designed for easy installation and maintenance, it meets Underwriters Laboratories (UL) standards for quality and safety. Suitable for 5" and 6" conduits, this fitting includes guidelines for proper expansion joint placement based on duct length, ensuring optimal functionality.

Product Specifications

Application

Used for more protection in 5" & 6"

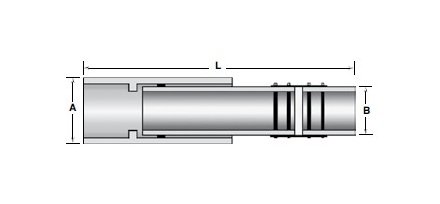

Dimesional Attributes A

5.79 in | 147 mm

Dimesional Attributes B

5.6 in | 142 mm

Dimesional Attributes L Max

51 in | 1,295 mm

Dimesional Attributes L Min

37 in | 940 mm

Dimesional Attributes Nominal Size

5 in

Installation Of Expansion Joints

When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart

Note

All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Alignment/Expansion

Specifications Type

Iron Pipe Size (IPS) Belowground Alignment/Expansion Fitting with O-Ring

Specifications Wall Thickness

Medium Wall

Specifications Weight

3.81 kg | 8.40 lb
