Champion Fiberglass 5 Inch IPS Medium Wall Aboveground Box Connector

Name: Champion Fiberglass 5 Inch IPS Medium Wall Aboveground Box Connector
Brand: Colonial Teltek
SKU: PVC-e10f2c
Price: 24.99 USD
Availability: OutOfStock

SKU:PVC-e10f2c

Champion Fiberglass 5" IPS Medium Wall Box Connector with UL Certification for enhanced protection in threaded fittings.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 5 Inch IPS Medium Wall Aboveground Box Connector is a high-quality termination solution designed for superior protection in threaded fittings. This box connector features straight threads (NPS) and comes with a locknut for secure installation. Constructed with medium wall thickness, this connector meets Underwriters Laboratories (UL) certifications, ensuring reliability and safety. It is specifically engineered for use with 5" and 6" threaded fittings, making it a versatile and essential component for electrical conduit systems.

Product Specifications

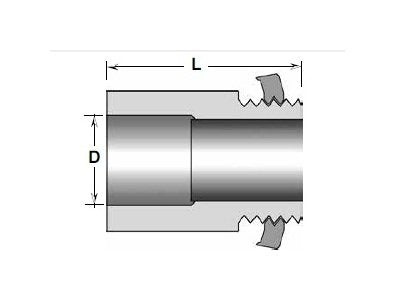

Dimesional Attributes D

5.59 in | 142 mm

Dimesional Attributes L

5 in | 127 mm

Dimesional Attributes Nominal Size

5 in

Features

Most Commonly used.

Specifications Application

Used for more protection in 5" & 6"Threaded Fittings

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Box Connector

Specifications Connection Type

Tapered, National Pipe Thread (NPT)

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Aboveground Box Connector

Specifications Wall Thickness

Medium Wall

Specifications Weight

1.25 kg | 2.76 lb
