Champion Fiberglass 5-Inch Medium Wall ID Belowground Radius Elbow
Champion Fiberglass 5-Inch Medium Wall ID Belowground Radius Elbow
SKU:BRI-05a38c
Superior-quality 5-inch medium wall fiberglass elbow for conduit systems. Meets UL standards. Temperature range -60ºF to 250ºF.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Champion Fiberglass 5-Inch Medium Wall ID Belowground Radius Elbow
$55.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5-Inch Medium Wall ID Belowground Radius Elbow
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conduit systems with the Champion Fiberglass 5-Inch Medium Wall ID Belowground Radius Elbow. This plain end elbow, with a 90º angle and 36-inch radius, offers superior durability and protection. Manufactured using the single circuit filament winding process, this black elbow meets Underwriters Laboratories (UL) standards. With a temperature range of -60ºF to 250ºF, this fiberglass elbow is ideal for belowground applications. Champion Fiberglass ensures quality with a current ISO 9001:2008 Quality Management System certificate.
Product Specifications
Application
Used for more protection in 5" & 6"

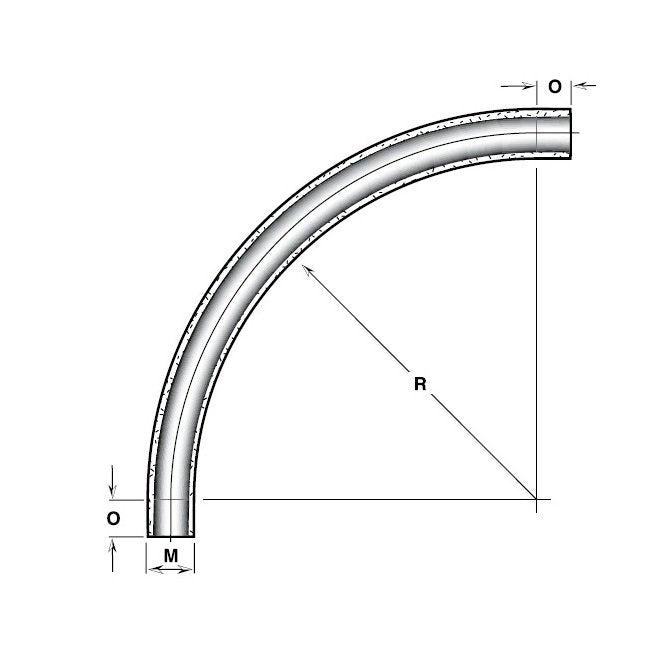

Dimesional Attributes M
5.19 in | 132 mm
Dimesional Attributes Nominal Size
5 in
Dimesional Attributes O Tangent Min
6 in | 152 mm
Dimesional Attributes R Radius Min
36 in | 914 mm
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Angle
90 º
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Elbow
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Plain End Elbow
Specifications Type
ID Belowground (Tubular) Radius Elbow
Specifications Wall Thickness
Medium Wall
Specifications Weight
2.90 kg | 6.45 lb
