Champion Fiberglass 5" IPS Alignment/Expansion Fitting with O-Ring
Champion Fiberglass 5" IPS Alignment/Expansion Fitting with O-Ring
SKU:PVC-64e80f
Champion Fiberglass IPS Alignment/Expansion Fitting - UL Certified, Medium Wall Thickness, Corrosion Protection
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Champion Fiberglass 5" IPS Alignment/Expansion Fitting with O-Ring
$89.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" IPS Alignment/Expansion Fitting with O-Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® 5 Inch Iron Pipe Size (IPS) Alignment/Expansion Fitting with O-Ring offers superior protection with its medium wall thickness and corrosion-resistant stainless steel clamps. Designed for aboveground applications, this fitting is UL certified and ensures a secure connection with the included O-Ring. Suitable for conduits of 5" and 6" diameters, it features precise dimensions for easy installation at specified intervals. The yellow line on the nipple end aids in accurate setup, making it a reliable choice for expansion joint requirements.
Product Specifications
Application
Used for more protection in 5" & 6"

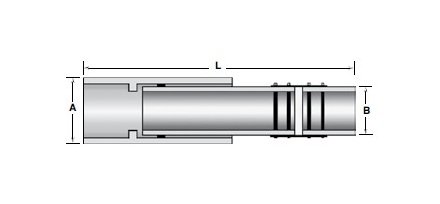

Dimesional Attributes A
5.79 in | 147 mm
Dimesional Attributes B
5.6 in | 142 mm
Dimesional Attributes L Max
51 in | 1,295 mm
Dimesional Attributes L Min
37 in | 940 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Alignment/Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Alignment/Expansion Fitting with O-Ring
Specifications Wall Thickness
Medium Wall
Specifications Weight
3.81 kg | 8.40 lb
