Champion Fiberglass 5" IPS Belowground Straight Conduit with Interference Joint
Champion Fiberglass 5" IPS Belowground Straight Conduit with Interference Joint
SKU:PVC-7fe29d
Champion Fiberglass 5" Conduit: Bell & Spigot, High Strength, UL Certified, Epoxy-based
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Champion Fiberglass 5" IPS Belowground Straight Conduit with Interference Joint
$99.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" IPS Belowground Straight Conduit with Interference Joint
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 5" IPS Belowground Straight Conduit with Interference Joint features an integral bell and spigot system for easy installation. With buttress type male and female threads, it ensures a high pull-out strength of 1,000 lbs. This black conduit is concrete tight and meets UL industry standards. Manufactured using the single circuit filament winding process, it is epoxy-based with continuous E-glass roving, ensuring fire resistance and a temperature range of -60ºF to 250ºF. Champion Fiberglass holds an ISO 9001:2008 Quality Management System certification.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

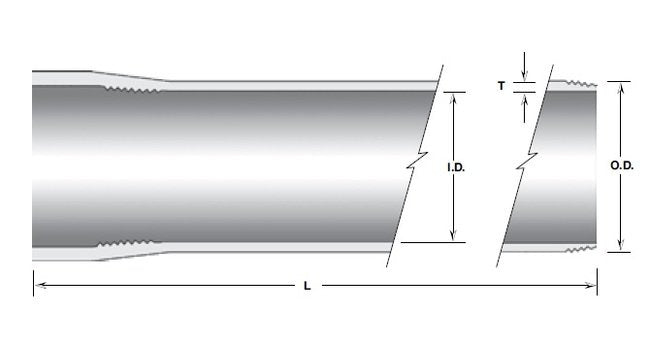

Dimesional Attributes Average Outside Diameter
5.520 in | 140 mm
Dimesional Attributes Inside Diameter Min
5.380 in | 137 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
5 in | 127 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Straight Conduit with Interference Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.90 lb/ft | 1.34 kg/m
