Champion Fiberglass 5" IPS Medium Wall Belowground End Bell

Name: Champion Fiberglass 5" IPS Medium Wall Belowground End Bell
Brand: Colonial Teltek
SKU: PVC-7f3dbd
Price: 29.99 USD
Availability: OutOfStock

SKU:PVC-7f3dbd

Champion Fiberglass 5" IPS End Bell for smooth cable pulling with UL compliance and robust build.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 5 Inch IPS Medium Wall Belowground Socket Type End Bell is designed for creating permanent terminations with smooth surfaces for cable pulling. With a sturdy construction meeting Underwriters Laboratories (UL) standards, this end bell offers enhanced protection in 5" & 6" applications. The black color, precise dimensions, and Champion Fiberglass® quality make it a reliable choice for conduit installations.

Product Specifications

Application

Used for more protection in 5" & 6"

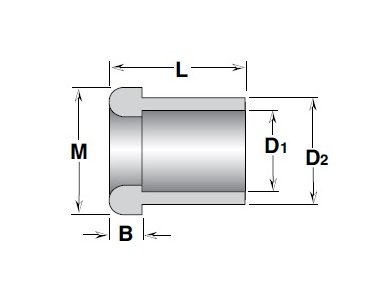

Dimesional Attributes B

0.75 in | 19 mm

Dimesional Attributes D1

5.59 in | 142 mm

Dimesional Attributes D2

5.79 in | 147 mm

Dimesional Attributes L

3.00 in | 76 mm

Dimesional Attributes M

7.37 in | 187 mm

Dimesional Attributes Nominal Size

5 in

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Belowground Socket Type End Bell

Specifications Wall Thickness

Medium Wall

Specifications Weight

0.43 kg | 0.95 lb

Champion Fiberglass 5" IPS Medium Wall Belowground End Bell
