Champion Fiberglass 5" IPS Medium Wall End Bell
Champion Fiberglass 5" IPS Medium Wall End Bell
SKU:PVC-27c4c1
Champion Fiberglass 5" IPS Medium Wall End Bell - Durable termination solution meeting UL standards for 5" & 6" protection.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Champion Fiberglass 5" IPS Medium Wall End Bell
$12.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" IPS Medium Wall End Bell
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

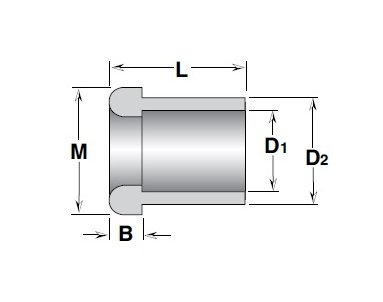

The Champion Fiberglass 5 Inch Nominal Size Iron Pipe Size (IPS) Medium Wall Aboveground Socket Type End Bell is designed for creating a secure termination point in electrical boxes. Made by Champion Fiberglass®, Inc., this end bell features a smooth surface for easy cable pulling. Weighing only 0.43 kg, it meets Underwriters Laboratories (UL) standards, offering reliable performance and durability. With precise dimensions (D1: 5.59 in, D2: 5.79 in, L: 3.00 in, M: 7.37 in, B: 0.75 in), this end bell is the ideal choice for applications requiring added protection in 5" and 6" installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application
Used for more protection in 5" & 6"
Dimesional Attributes B
0.75 in | 19 mm
Dimesional Attributes D1
5.59 in | 142 mm
Dimesional Attributes D2
5.79 in | 147 mm
Dimesional Attributes L
3.00 in | 76 mm
Dimesional Attributes M
7.37 in | 187 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Aboveground Socket Type End Bell
Specifications Wall Thickness
Medium Wall
Specifications Weight
0.43 kg | 0.95 lb
