Champion Fiberglass 5" IPS Medium Wall Iron Pipe Stop Coupling
Champion Fiberglass 5" IPS Medium Wall Iron Pipe Stop Coupling
SKU:BRI-cc9663
Durable 5" Champion Fiberglass Stop Coupling for underground conduit protection. UL certified with exceptional temperature resistance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Champion Fiberglass 5" IPS Medium Wall Iron Pipe Stop Coupling
$49.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" IPS Medium Wall Iron Pipe Stop Coupling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 5 Inch Nominal Size Medium Wall Iron Pipe Size Belowground Stop Coupling provides exceptional protection in underground applications for 5" and 6" conduits. Manufactured with high-quality fiberglass using the single-circuit filament winding process, this coupling meets UL standards and offers superior durability and resistance to extreme temperatures. With an epoxy-based resin system and fire-resistant materials, it ensures safety and reliable performance in a wide range of environments.
Product Specifications
Application
Used for more protection in 5" & 6"

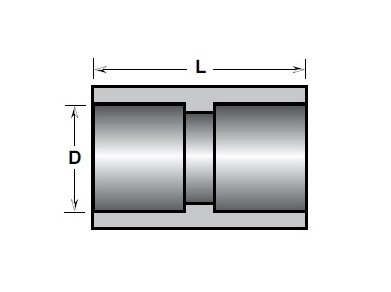

Dimesional Attributes D
5.59 in | 142 mm
Dimesional Attributes L
6 in | 152 mm
Dimesional Attributes Nominal Size
5 in
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Stop Coupling
Specifications Wall Thickness
Medium Wall
Specifications Weight
0.31 kg | 0.68 lb
