Champion Fiberglass 5" Medium Wall IPS Expansion Joint with O-Ring
Champion Fiberglass 5" Medium Wall IPS Expansion Joint with O-Ring
SKU:PVC-c8aaf4
High-quality Champion Fiberglass expansion joint for 5" & 6" conduits, meets UL standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Champion Fiberglass 5" Medium Wall IPS Expansion Joint with O-Ring
$45.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" Medium Wall IPS Expansion Joint with O-Ring
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 5 Inch Nominal Size Medium Wall Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring is designed for durability and reliability in protecting 5" and 6" conduits. This expansion joint, featuring a yellow line for easy installation, meets Underwriters Laboratories (UL) standards and is widely recognized for its quality and performance. Install at appropriate intervals based on duct length to ensure optimal protection and efficiency.
Product Specifications
Application
Used for more protection in 5" & 6"

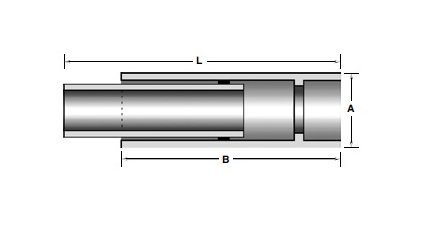

Dimesional Attributes A
5.79 in | 147 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Medium Wall
Specifications Weight
1.25 kg | 2.76 lb
