Champion Fiberglass 5" Medium Wall IPS Straight Conduit with Interference Joint, 20 ft
Champion Fiberglass 5" Medium Wall IPS Straight Conduit with Interference Joint, 20 ft
SKU:PVC-736a11
Champion Fiberglass 5" Medium Wall IPS Straight Conduit, Easy Installation, High Pull-Out Strength, UL/CSA Compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Champion Fiberglass 5" Medium Wall IPS Straight Conduit with Interference Joint, 20 ft
$89.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 5" Medium Wall IPS Straight Conduit with Interference Joint, 20 ft
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 5-inch Medium Wall IPS Straight Conduit with an interference joint offers a robust solution for enhanced protection in 5" & 6" applications. Featuring an integral bell and spigot with buttress threads, this conduit ensures easy installation and high pull-out strength of 1,000 lbs. Compliant with UL and CSA standards, this black conduit is concrete tight and manufactured with epoxy-based resin, continuous E-glass roving, and no halogen compounds. Perfect for aboveground applications, this fiberglass conduit guarantees durability and reliability in demanding environments.
Product Specifications
Application
Used for more protection in 5" & 6"

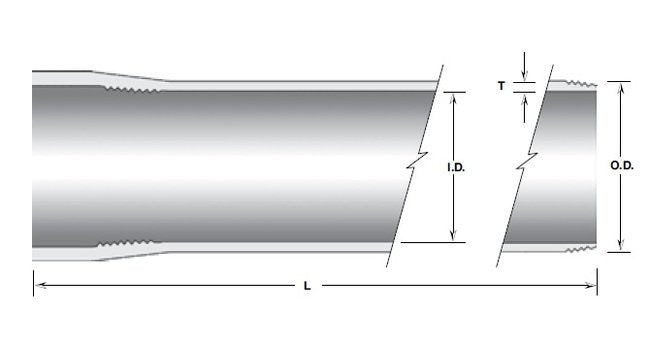

Dimesional Attributes Average Outside Diameter
5.572 in | 142 mm
Dimesional Attributes Inside Diameter Min
5.380 in | 137 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
5 in | 127 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.028 in | 0.034 in | -0.7 mm | 0.9 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint
Specifications Wall Thickness
Medium Wall
Specifications Weight
1.20 lb/ft | 1.79 kg/m
