Champion Fiberglass 6 Inch Heavy Wall IPS Sleeve Coupling with Gasket Joint

Name: Champion Fiberglass 6 Inch Heavy Wall IPS Sleeve Coupling with Gasket Joint
Brand: Colonial Teltek
SKU: PVC-96ec13
Price: 49.99 USD
Availability: OutOfStock

SKU:PVC-96ec13

Champion Fiberglass 6 in Heavy Wall IPS Sleeve Coupling with Gasket Joint - Superior protection and durability for 4-8" conduits. Triple seal gasket joint system. Compliant with federal standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass 6 Inch Heavy Wall IPS Sleeve Coupling with Gasket Joint is a premium conduit fitting designed for increased protection in the range of 4" to 8" conduits. Featuring a triple seal gasket joint system with a pull-out strength of up to 2,000 lbs, this coupling ensures a watertight seal without the need for additional retainer rings. Manufactured by Champion Fiberglass®, Inc., this coupling is known for its durability and reliability, making it a top choice for various applications requiring superior protection. Compliant with federal procurement standards, GSA requirements, and industry certifications, this coupling meets the stringent demands of institutional buyers.

Product Specifications

Application

Used for increased protection in 4" - 8"

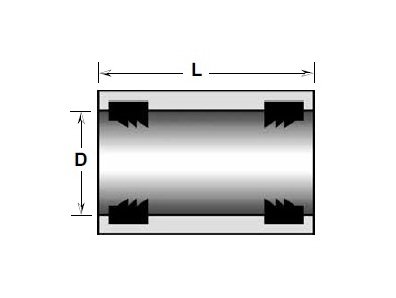

Dimesional Attributes D

6.69 in | 170 mm

Dimesional Attributes L

8 in | 203 mm

Dimesional Attributes Nominal Size

6 in

Features

Most Commonly used.

Gasket Joint Triple Seal

The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Coupling

Specifications Type

Iron Pipe Size (IPS) Aboveground Sleeve Coupling with Gasket Joint

Specifications Wall Thickness

Heavy Wall

Specifications Weight

1.09 kg | 2.40 lb
