Champion Fiberglass 6 Inch Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint
Champion Fiberglass 6 Inch Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint
SKU:BRI-b79d13
Durable 6" Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint, water-tight, UL & CSA certified
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Champion Fiberglass 6 Inch Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint
$59.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6 Inch Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 6 Inch Heavy Wall Iron Pipe Conduit with Triple Seal Gasket Joint is a durable and reliable solution for increased protection in 4" - 8" applications. Featuring an interference joint system with a pull out strength of 2,000 lbs when combined with the triple seal gasket, this conduit offers a water-tight seal with no need for additional retainer rings. Manufactured to meet Underwriters Laboratories (UL) and Canadian Standards Association (CSA) certifications, this conduit is ideal for various institutional and government projects requiring quality and compliance.
Product Specifications
Application
Used for increased protection in 4" - 8"

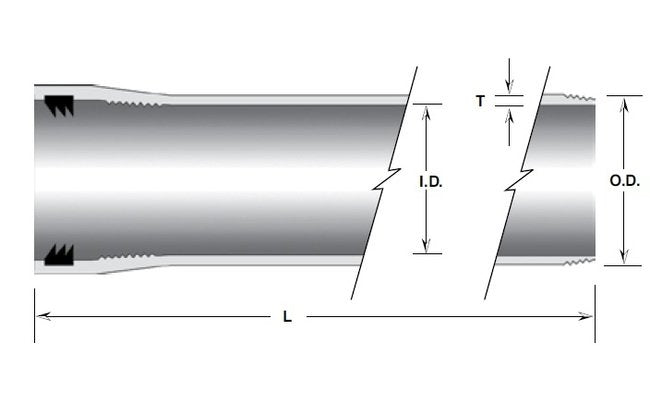

Dimesional Attributes Average Outside Diameter
6.654 in | 169 mm
Dimesional Attributes Inside Diameter Min
6.435 in | 163 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
6 in | 152 mm
Dimesional Attributes Nominal Wall Thickness
0.110 in | 3 mm
Dimesional Attributes Outside Diameter Tolerance
-0.028 in | 0.034 in | -0.7 mm | 0.9 mm
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Gasket Joint
Specifications Wall Thickness
Heavy Wall
Specifications Weight
1.63 lb/ft | 2.43 kg/m
