Champion Fiberglass 6 Inch ID Belowground Straight Conduit with Interference Joint
Champion Fiberglass 6 Inch ID Belowground Straight Conduit with Interference Joint
SKU:BRI-33db4f
Reliable Champion Fiberglass 6" ID Belowground Straight Conduit with Interference Joint, concrete-tight design, UL & CSA certified.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Champion Fiberglass 6 Inch ID Belowground Straight Conduit with Interference Joint
$59.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6 Inch ID Belowground Straight Conduit with Interference Joint
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 6 Inch ID Belowground Straight Conduit with Interference Joint is a reliable and durable solution for underground conduit systems. Featuring an interference joint system with a buttress type male thread for easy installation, this conduit ensures a secure connection with high pull-out strength of 1,000 lbs. Its concrete-tight design meets industry standards, including Underwriters Laboratories (UL) and Canadian Standards Association (CSA) certifications. Manufactured using epoxy-based resin and continuous E-glass roving, this conduit is resistant to extreme temperatures (-60ºF to 250ºF) and complies with ISO 9001:2008 Quality Management System.

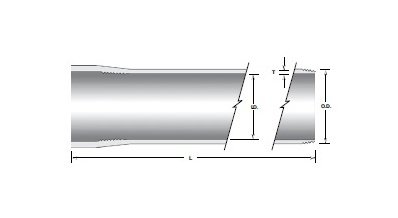

Product Specifications
Dimesional Attributes Average Outside Diameter
6.140 in | 156 mm
Dimesional Attributes Inside Diameter Min
6.000 in | 152 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
6 in | 152 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
ID Belowground (Tubular) Straight Conduit with Interference Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.02 lb/ft | 1.52 kg/m
