Champion Fiberglass 6 Inch IPS Belowground Radius Elbow
Champion Fiberglass 6 Inch IPS Belowground Radius Elbow
SKU:BRI-4ede74
Durable 6 Inch IPS Belowground Radius Elbow with 11 1/4º angle and 36-inch radius. Meets UL standards for reliability and safety.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Champion Fiberglass 6 Inch IPS Belowground Radius Elbow
$39.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6 Inch IPS Belowground Radius Elbow
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 6 Inch IPS Belowground Radius Elbow is a durable and reliable conduit elbow designed for belowground installations. With an angle of 11 1/4º and a minimum radius of 36 inches, this elbow is ideal for bridge conduit systems. Manufactured with Champion Fiberglass®, Inc.'s epoxy-based resin system and continuous E-glass roving, it meets stringent industry standards such as Underwriters Laboratories (UL). This elbow is integral bell and spigot or bonded coupling and spigot for secure connections and is designed for use in temperature ranges from -60ºF to 250ºF.

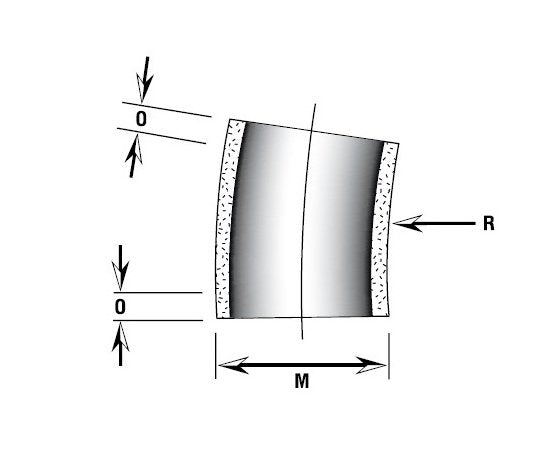

Product Specifications
Dimesional Attributes M
6.575 in | 167 mm
Dimesional Attributes Nominal Size
6 in
Dimesional Attributes O Tangent Min
6 in | 152 mm
Dimesional Attributes R Radius Min
36 in | 914 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Angle
11 1/4 º
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Elbow
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Plain End Elbow
Specifications Type
Iron Pipe Size (IPS) Belowground Radius Elbow
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.72 kg | 1.59 lb
