Champion Fiberglass 6 Inch IPS Heavy Wall Fiberglass End Cap with Gasket Joint
Champion Fiberglass 6 Inch IPS Heavy Wall Fiberglass End Cap with Gasket Joint
SKU:BRI-c1c56a
Protect conduit systems effectively with our 6 Inch Fiberglass End Cap with Triple Seal Gasket Joint!
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Champion Fiberglass 6 Inch IPS Heavy Wall Fiberglass End Cap with Gasket Joint
$45.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6 Inch IPS Heavy Wall Fiberglass End Cap with Gasket Joint
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 6 Inch IPS Heavy Wall Fiberglass End Cap with Gasket Joint offers superior protection for conduit systems ranging from 4" to 8". Constructed with durable fiberglass material, this end cap features a triple seal gasket joint for a secure, water-tight seal. The bell and spigot design eliminates the need for additional retainer rings, ensuring ease of installation and maintenance. With a pull out strength of up to 2,000 lbs when combined with the interference joint, this end cap excels in providing reliable protection for critical infrastructure.
Product Specifications
Application
Used for increased protection in 4" - 8"

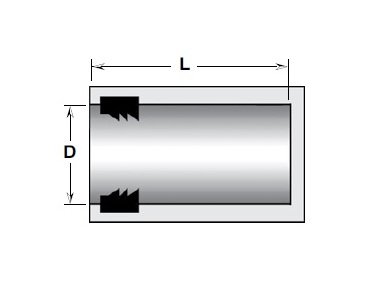

Dimesional Attributes D
6.69 in | 170 mm
Dimesional Attributes L
4 in | 102 mm
Dimesional Attributes Size
6 in
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Material
Fiberglass
Specifications Type
Iron Pipe Size (IPS) Aboveground Fiberglass End Cap with Gasket Joint
Specifications Wall Thickness
Heavy Wall
Specifications Weight
1.09 kg | 2.40 lb
