Champion Fiberglass 6" IPS Belowground Straight Conduit
Champion Fiberglass 6" IPS Belowground Straight Conduit
SKU:BRI-22c10e
Durable 6" IPS fiberglass conduit for belowground applications, meets UL standards, ideal for commercial projects.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Champion Fiberglass 6" IPS Belowground Straight Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6" IPS Belowground Straight Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass 6" IPS Belowground Straight Conduit with Straight Socket offers a durable and reliable solution for belowground conduit applications. Constructed with a standard wall thickness, this conduit features an integral bell and spigot system for easy installation. Made from fiberglass with an epoxy resin system, it meets UL standards and is suitable for a temperature range of -60ºF to 250ºF. Champion Fiberglass ensures quality with its ISO 9001:2008 certification, making it a trusted choice for commercial and institutional projects requiring superior performance and compliance.
Product Specifications

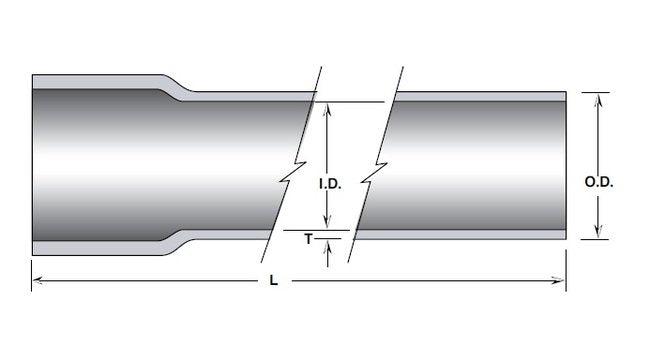

Dimesional Attributes Length L
10 ft
Dimesional Attributes Nominal Size
6 in
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Straight Conduit with Straight Socket
Specifications Wall Thickness
Standard Wall
