Champion Fiberglass 6" x 10ft IPS Medium Wall Belowground Conduit with Interference Joint
Champion Fiberglass 6" x 10ft IPS Medium Wall Belowground Conduit with Interference Joint
SKU:BRI-8e085e
High-strength Champion Fiberglass 6" x 10ft belowground conduit with interference joint, UL-certified for durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Champion Fiberglass 6" x 10ft IPS Medium Wall Belowground Conduit with Interference Joint
$129.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass 6" x 10ft IPS Medium Wall Belowground Conduit with Interference Joint
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior protection with the Champion Fiberglass 6-inch Nominal Size and 10-foot Length Medium Wall Iron Pipe Size (IPS) Belowground Straight Conduit. Featuring an integral bell and spigot system with buttress threads for easy installation and high pull-out strength, this black conduit meets Underwriters Laboratories (UL) standards. With epoxy-based resin and continuous E-glass roving construction, it ensures durability and fire resistance. Ideal for belowground applications, this product offers reliability and compliance with stringent quality management standards.
Product Specifications
Application
Used for more protection in 5" & 6"

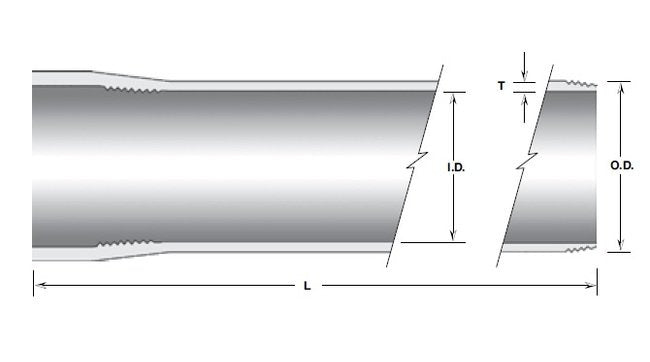

Dimesional Attributes Length L
10 ft | 3 m
Dimesional Attributes Nominal Size
6 in
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Note
When ordering 10 ft (3.05 m) lengths, half of the order will be supplied with interference joint and half with straight socket joint.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Straight Conduit with Interference Joint
Specifications Wall Thickness
Medium Wall
