Champion Fiberglass Extra Heavy Wall Straight Conduit with Straight Socket
Champion Fiberglass Extra Heavy Wall Straight Conduit with Straight Socket
SKU:PVC-b73d7d
Highly protective Champion Fiberglass Conduit for institutional use, with superior safety features and industry certifications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Champion Fiberglass Extra Heavy Wall Straight Conduit with Straight Socket
$25.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass Extra Heavy Wall Straight Conduit with Straight Socket
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass Extra Heavy Wall Straight Conduit with Straight Socket offers superior physical protection with its bullet-resistant design, ideal for Class 1 Div 2 & Class 1 Zone 2 applications. This fiberglass conduit, meeting UL and CSA standards, features an epoxy-based resin system, continuous E-glass roving, and a temperature range from -60ºF to 250ºF. With integral bell and spigot, this conduit ensures easy installation and durability. Certified under ISO 9001:2008, this system guarantees quality and reliability for institutional and government projects.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

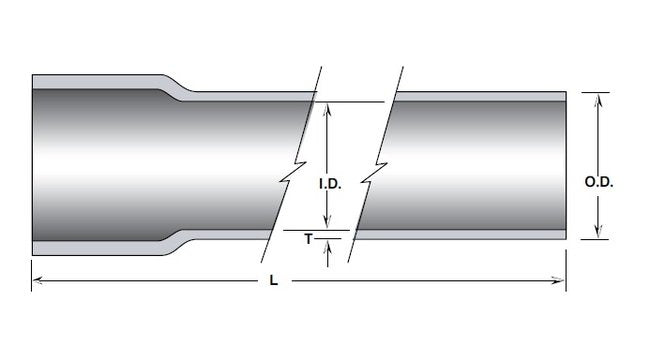

Dimesional Attributes Average Outside Diameter
2.500 in | 64 mm
Dimesional Attributes Inside Diameter Min
2.000 in | 51 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
2 in | 51 mm
Dimesional Attributes Nominal Wall Thickness
0.25 in | 6 mm
Dimesional Attributes Outside Diameter Tolerance
-0.036 in | 0.056 in | -0.9 mm | 1.4 mm
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
ID Aboveground Straight Conduit with Straight Socket
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.26 lb/ft | 1.88 kg/m
