Champion Fiberglass IPS 3" Aboveground Conduit with Triple Seal Gasket Joint
Champion Fiberglass IPS 3" Aboveground Conduit with Triple Seal Gasket Joint
SKU:PVC-64a77d
Champion Fiberglass 3" Aboveground Conduit with Triple Seal Gasket Joint provides superior water-tightness and high strength for reliable underground installations.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Champion Fiberglass IPS 3" Aboveground Conduit with Triple Seal Gasket Joint
$99.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass IPS 3" Aboveground Conduit with Triple Seal Gasket Joint
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass IPS 3" Aboveground Conduit with Triple Seal Gasket Joint offers a robust solution for underground applications. Featuring an integral bell and spigot with a triple seal gasket, this conduit ensures a secure and water-tight connection with a high pull-out strength of 2,000 lbs. Crafted from fiberglass using a single filament winding process, it meets stringent industry standards like UL and CSA. With a resin system free of halogen compounds and temperature range of -60ºF to 250ºF, this conduit is ideal for institutional projects requiring reliability and durability.
Product Specifications

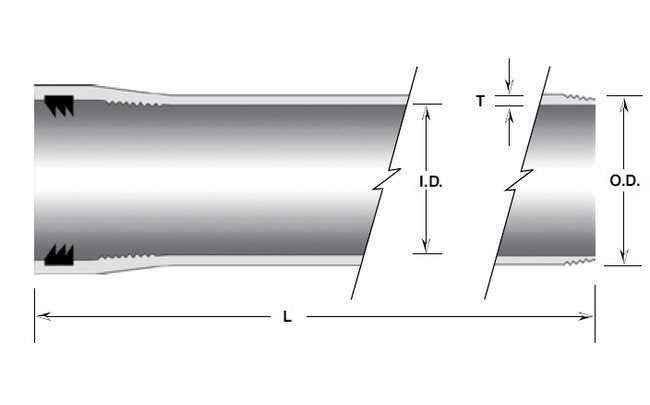

Dimesional Attributes Average Outside Diameter
3.500 in | 89 mm
Dimesional Attributes Inside Diameter Min
3.360 in | 85 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
3 in | 76 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Gasket Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.60 lb/ft | 0.83 kg/m
