Champion Fiberglass Male Adapter with Gasket, 6 in, NPT Threads

Name: Champion Fiberglass Male Adapter with Gasket, 6 in, NPT Threads
Brand: Colonial Teltek
SKU: PVC-450d53
Price: 39.99 USD
Availability: OutOfStock

SKU:PVC-450d53

Upgrade your conduit system with a durable and watertight Champion Fiberglass Male Adapter, meeting UL standards with a secure triple seal gasket.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your conduit system with the Champion Fiberglass Male Adapter featuring a triple seal gasket for a secure, watertight seal. This ID Belowground Male Adapter is designed for durability and reliability, meeting UL standards. With a pull-out strength of up to 2,000 lbs, this adapter ensures a robust connection. Manufactured with epoxy-based resin and E-glass roving, it withstands temperatures from -60ºF to 250ºF. The compression-molded SMC material in the fittings is fire-resistant to UL 2515. Trust in Champion Fiberglass for quality and compliance with stringent industry requirements.

Product Specifications

Application

Threaded Fittings

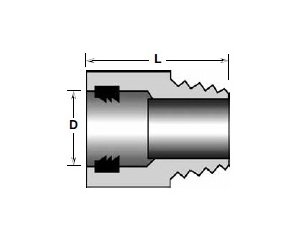

Dimesional Attributes D

6.16 in | 156 mm

Dimesional Attributes L

5 in | 127 mm

Dimesional Attributes Nominal Size

6 in

Features

Most Commonly used.

Gasket Joint Triple Seal

The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Adapter

Specifications Connection Type

Male, Tapered Threads (National Pipe Thread (NPT))

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

ID Belowground (Tubular) Male Adapter Gasket Joint

Specifications Wall Thickness

Standard Wall

Specifications Weight

1.04 kg | 2.30 lb
