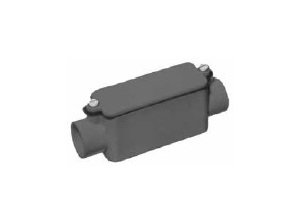

Champion Fiberglass Type C Conduit Bodies
Champion Fiberglass Type C Conduit Bodies
SKU:BRI-735310
Enhance conduit systems with Champion Fiberglass Type C Conduit Bodies, durable, flame retardant, and watertight, meeting top industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Champion Fiberglass Type C Conduit Bodies
$24.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass Type C Conduit Bodies
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your conduit system with Champion Fiberglass Type C Conduit Bodies, crafted for durability and performance. Made of vinyl ester resin with high glass content, flame retardant per UL 2515, CSA C22.2 No. 2515, and halogen-free, these conduit bodies ensure superior strength. Each unit includes a robust rubber gasket for a watertight seal and stainless steel hardware. Ideal for aboveground applications, these conduit bodies offer a volume capacity of 70.75 in³, meeting the highest industry standards for quality and safety.

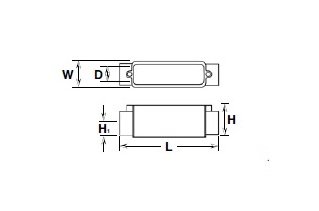

Product Specifications
Dimesional Attributes D
2.390 in | 61 mm
Dimesional Attributes H
4.000 in | 102 mm
Dimesional Attributes H1
1.812 in | 46 mm
Dimesional Attributes L
13.375 in | 340 mm
Dimesional Attributes Nominal Size
2 in
Dimesional Attributes W
3.040 in | 77 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
C
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
70.75 in³ | 1,160 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.13 kg | 2.50 lb
