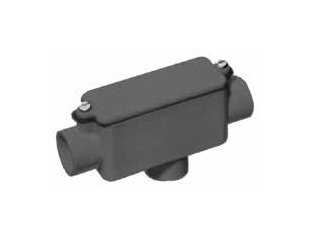

Champion Fiberglass Type TB Conduit Bodies - 2 In
Champion Fiberglass Type TB Conduit Bodies - 2 In
SKU:PVC-be7acc
Durable Champion Fiberglass Type TB Conduit Bodies: Vinyl Ester Resin, Flame Retardant, Watertight Seal, Stainless Steel Hardware. Ideal for institutional use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Champion Fiberglass Type TB Conduit Bodies - 2 In
$59.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass Type TB Conduit Bodies - 2 In
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass Type TB Conduit Bodies are expertly crafted using compression molding techniques for unmatched durability. Constructed from vinyl ester resin with high glass content, these conduit bodies are flame retardant per UL 2515 and CSA C22.2 No. 2515, and halogen-free, ensuring top-notch safety standards. Each unit comes equipped with a high-performance rubber gasket for a watertight seal, and features stainless steel hardware for added longevity. With a volume capacity of 70.75 in³ and key dimensions of 13.375" x 4.000" x 3.040", these conduit bodies are ideal for institutional applications requiring reliability and adherence to stringent industry standards.
Product Specifications

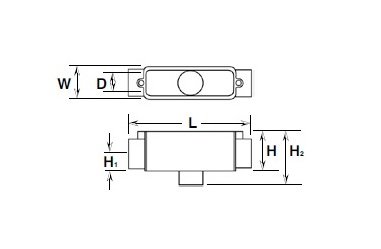

Dimesional Attributes D
2.390 in | 61 mm
Dimesional Attributes H
4.000 in | 102 mm
Dimesional Attributes H1
1.812 in | 46 mm
Dimesional Attributes H2
6.687 in | 170 mm
Dimesional Attributes L
13.375 in | 340 mm
Dimesional Attributes Nominal Size
2 in
Dimesional Attributes W
3.040 in | 77 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
TB
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
70.75 in³ | 1,160 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.27 kg | 2.80 lb
